Dowels
Fischer FIS H

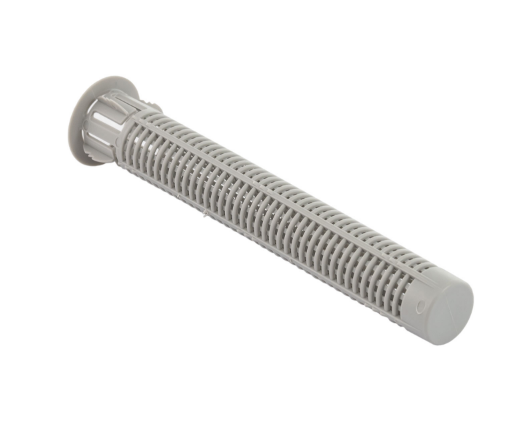

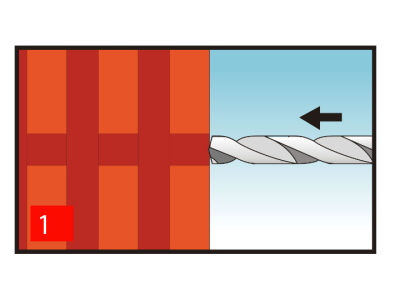

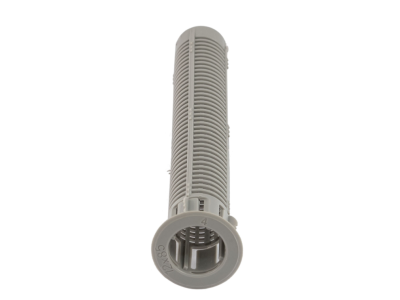

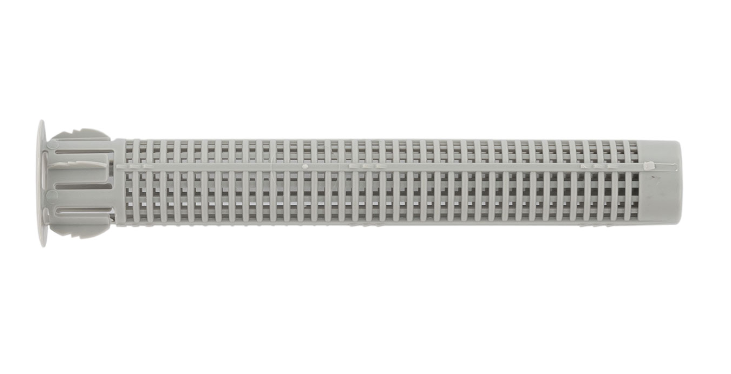

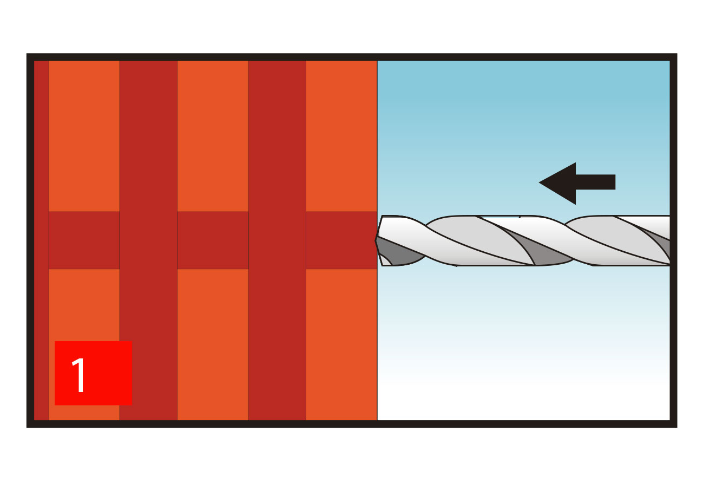

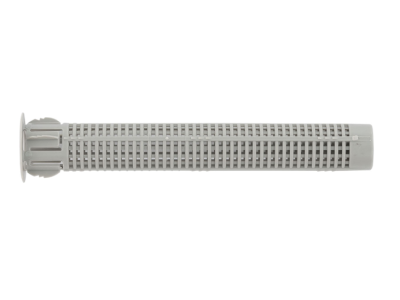

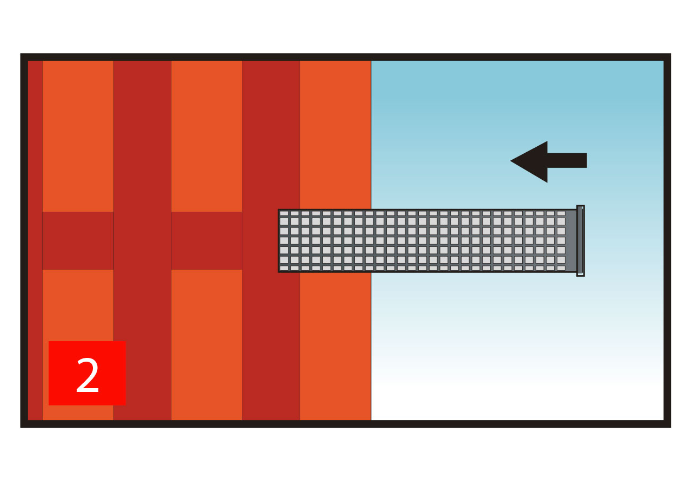

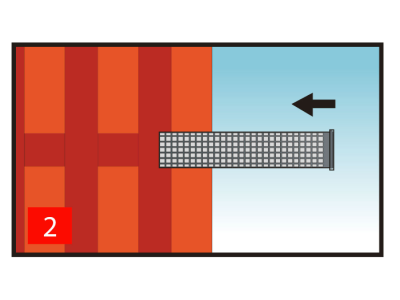

The Fischer FIS H chemical anchor plug is a cost-effective system component for using injection mortars in perforated brickwork. The anchor sleeve is cut to size, inserted into the drilled hole and filled with injection mortar. When fixing, the mortar is pressed through the grid structure and then connected to the perforated brick by interlocking.
Its advantage is that the grid structure allows for an even distribution of the mortar in the drilled hole and a secure hold.
Its advantage is that the grid structure allows for an even distribution of the mortar in the drilled hole and a secure hold.
Prices from €0.47
Description
Application:
For fixing in perforated bricks and materials with lower density.
The sleeve retains the chemical mixture and prevents leakage into the cavities.
It is self-centering, which ensures strength and stable fixation in the hole.
Advantages
The lattice structure of the anchor sleeve allows for an even distribution of the mortar in the drilled hole and a secure hold.
Anchoring without expansion allows for small center-to-center and edge distances.
The mortar seals the drilled hole.
Technical parameters of the offered sizes:

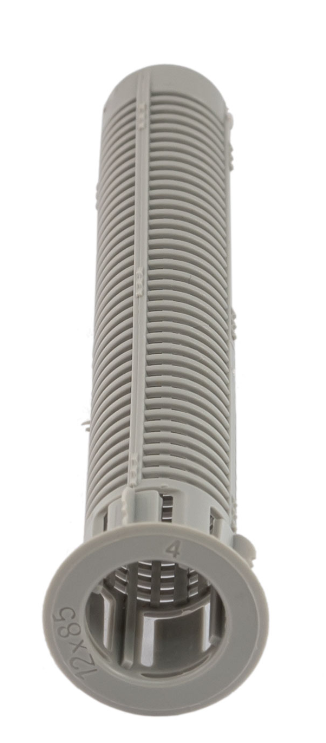

Outer diameter: 12 mm
Length: 85 mm
Material: PVC
Min. hole depth: 95 mm
Min. anchoring depth: 85 mm
Dowel hole: M6-M8 mm
Dimensions: L/W/H - 85 / 12/ 12mm
Weight: 0.002kg
Outer diameter: 16 mm
Length: 130 mm
Material: PVC
Min. hole depth: 140 mm
Min. anchoring depth: 130 mm
Dowel hole: M8-M10 mm
Dimensions: L/W/H - 85 / 12/ 12mm
Weight: 0.003kg
